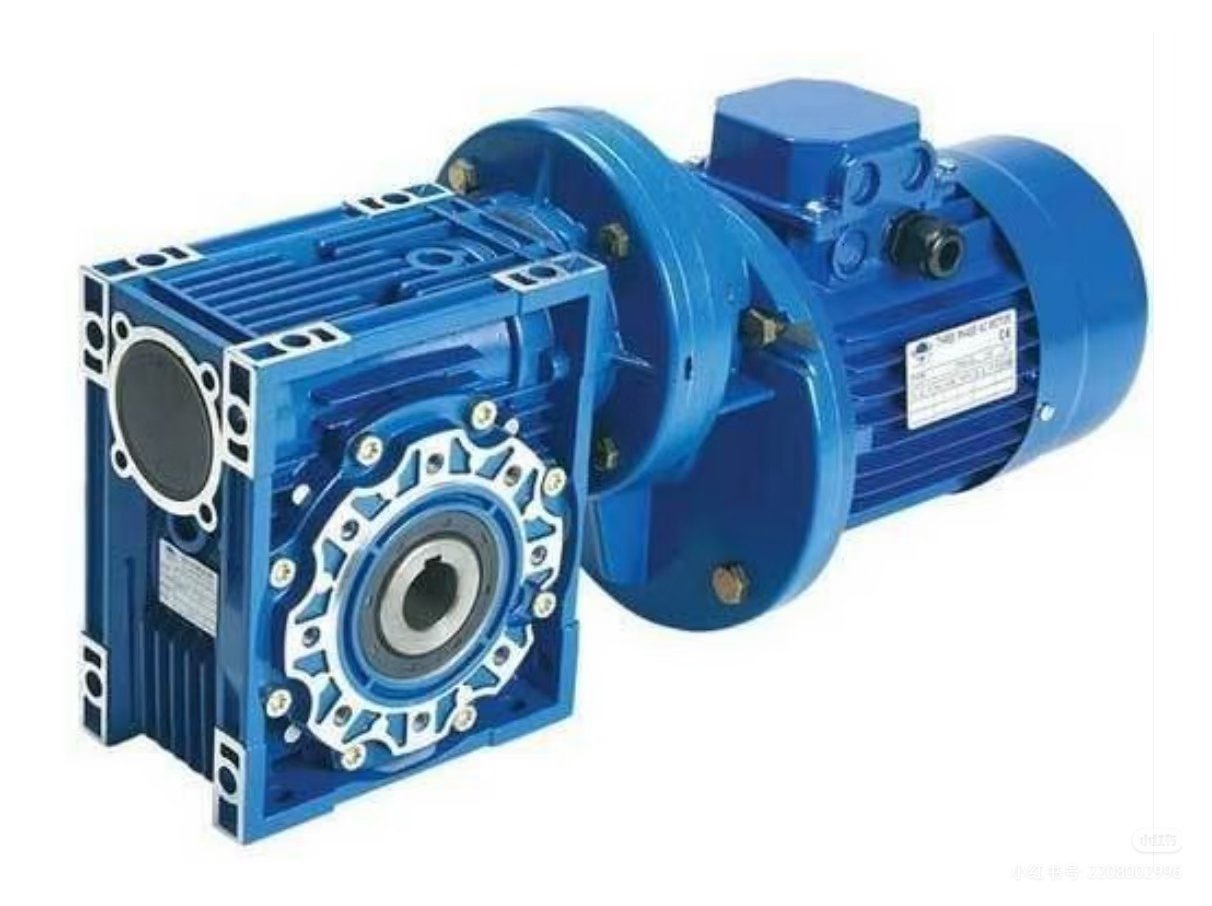

The RV worm gear reducer is made of aluminum alloy by die-casting. It has a compact structure and multiple installation methods. It can have a self-locking function under certain conditions to meet different application scenarios. It is widely used in the light industry sector. We not only has the classic housing type, but also independently developed and produced multiple housing options with more attractive appearances.
Main parameter:
Model RV025/30-63/150
Ratio: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
Transmission Ratio 100-10000
Input power 0.06KW-15KW
Output torque 0.06kw-1.5kw
Components:
1. Housing: Die-cast Aluminum Alloy Gearbox (RV025~RV090)
Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: Wearable Tin (Stannum) Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding
4. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
IEC B5/B14 Motor Flange
NEMA C Frame Motor Flange
Solid Shaft Input
5. Output Configurations:
Keyed Hollow Shaft Output
Hollow Shaft with Output Flange
Plug-in Solid Shaft Output
6. Options: Worm Shaft Rear Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover
7. Gearbox Painting:
Aluminum Alloy Gearbox:
After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey Accordingly
Cast Iron Gearbox:
After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue
Main features
1. Quality aluminum alloy gear box, light weight and not rust
2. 2 optional worm wheel materials: Tin (Stannum) bronze or aluminum bronze alloy
3. Standard parts and very flexible for shaft configurations and motor flange interface
4. Several optional mounting options
5. Low noise, High efficiency in heat dissipation
Compact structure, smooth transmission, and good self-locking performance under certain conditions.
Lubrication:
Grease Lubrication
Oil-bath and Splash Lubrication
Output type
◎ Hollow shaft output
◎ Solid shaft output
◎ Output flange
◎ Torque arm
Input type
◎ Input hole
◎ Input shaft
RV050 worm gear reducers are widely used in:
• Conveyor systems
• Packaging machinery
• Food processing equipment
• Automation equipment
• Material handling systems
• Small industrial machines
